The ability to test critical power systems at voltages of 1.2KV to 20kV using direct-connect, High Voltage Load Bank offers engineers flexibility, time savings, cost savings, space savings.
The ability to test critical power systems at voltages of 1.2KV to 20kV using direct-connect, High Voltage Load Bank offers engineers flexibility, time savings, cost savings, space savings and simplicity. It mainly used to commission utility, oil & gas, and industrial power systems without the need for additional transformers and cabling.

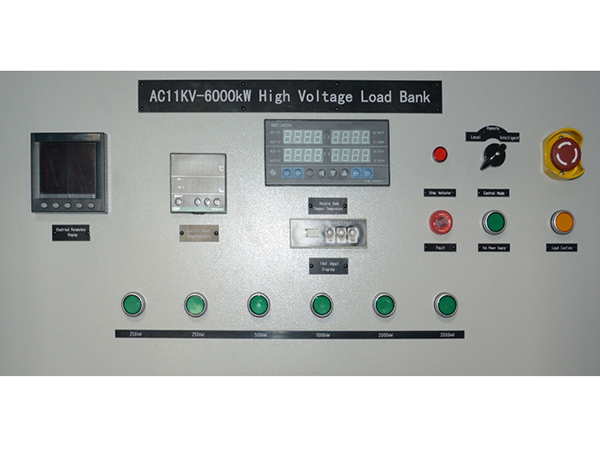

1.Control mode:
(1)Manual control
(2)Remote controller
(3) PC software control
2. Protection function: overvoltage, overcurrent, overheat, over low blowing rate, blower overheat, blower phase sequence reverse protection, smoke alarm etc.
3. Cooling: industrial heavy duty blower, horizon air intake, upwards outlet, low noise.
4. Power consumption components: made by special alloy resistance, high temperature resisting, high heat dissipation capability, high heat stability, no naked light, safety and reliability. Running temperature is 1/3 of rating.

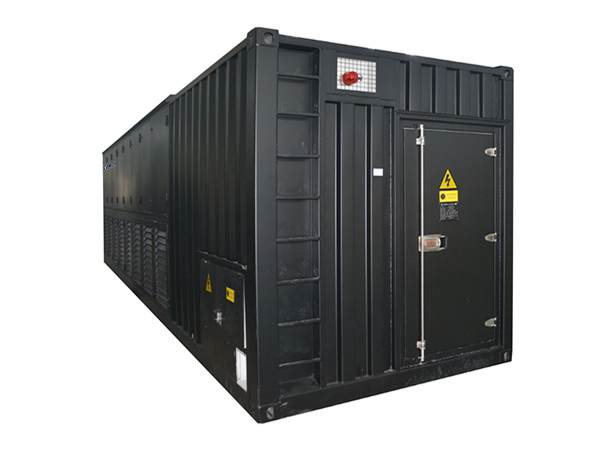

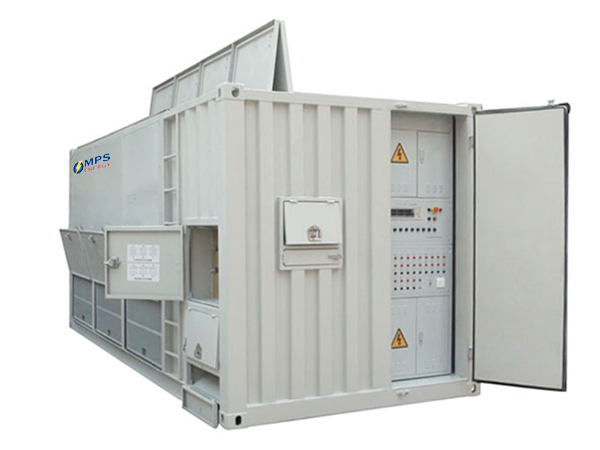

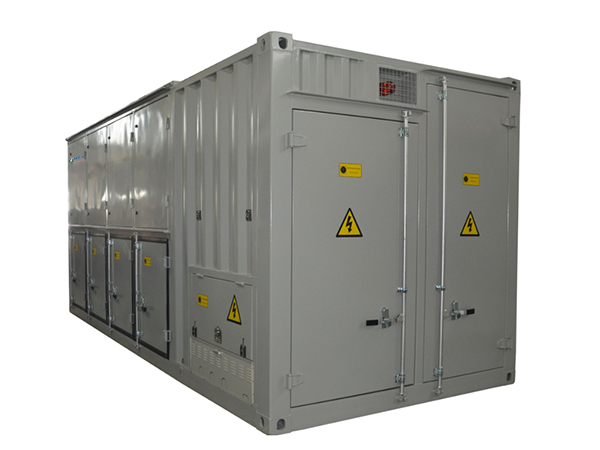

5. Weather-proof structure: containerized structure provides ultra protection, protection grade higher than IP54.
6. Material and coating: the body adopt cold-rolled steel plate that processed by galvanizing corrosion protection, powder coated and spray paint.
7. Integrated & modularization design: easy to installation, maintenance and transportation.
| Rated Voltage | Rated Power | PF | Dimension | Weight(kg) |
|---|---|---|---|---|
| 3.3kV/6.6kV/11kV etc | 2000kW | 1 | 6058mm*2438mm*2591mm | 6000 |
| 3.3kV/6.6kV/11kV etc | 3000kW | 1 | 6058mm*2438mm*2591mm | 7000 |
| 3.3kV/6.6kV/11kV etc | 5000kW | 1 | 12192mm*2438mm*2591mm | 140000 |
| 3.3kV/6.6kV/11kV etc | 6000kW | 1 | 12192mm*2438mm*2591mm | 160000 |
